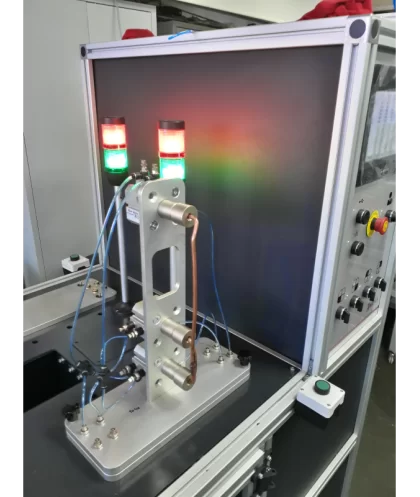

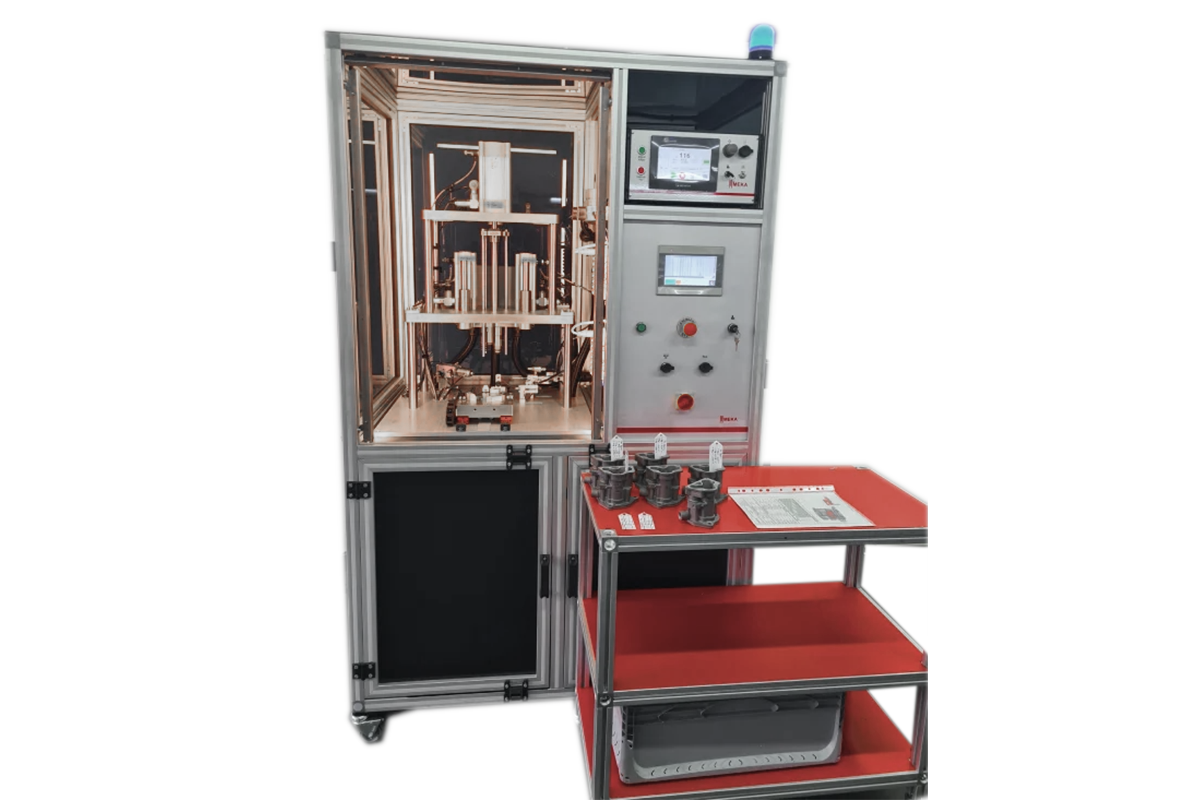

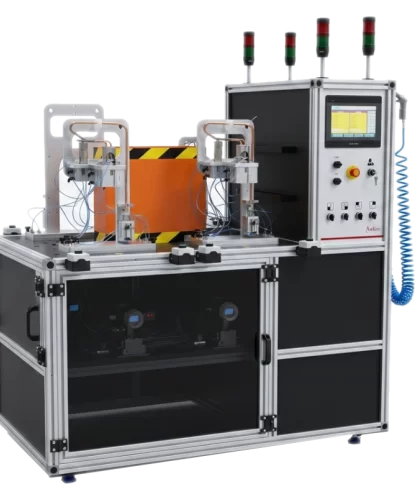

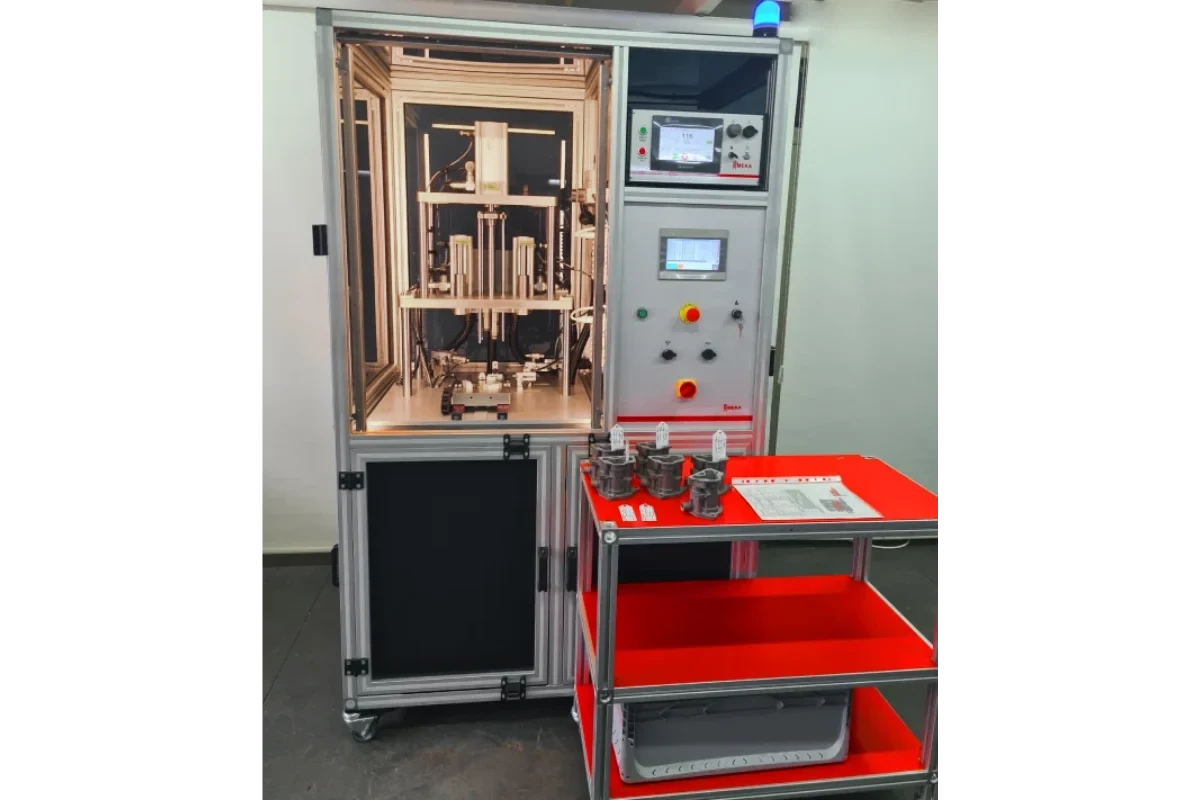

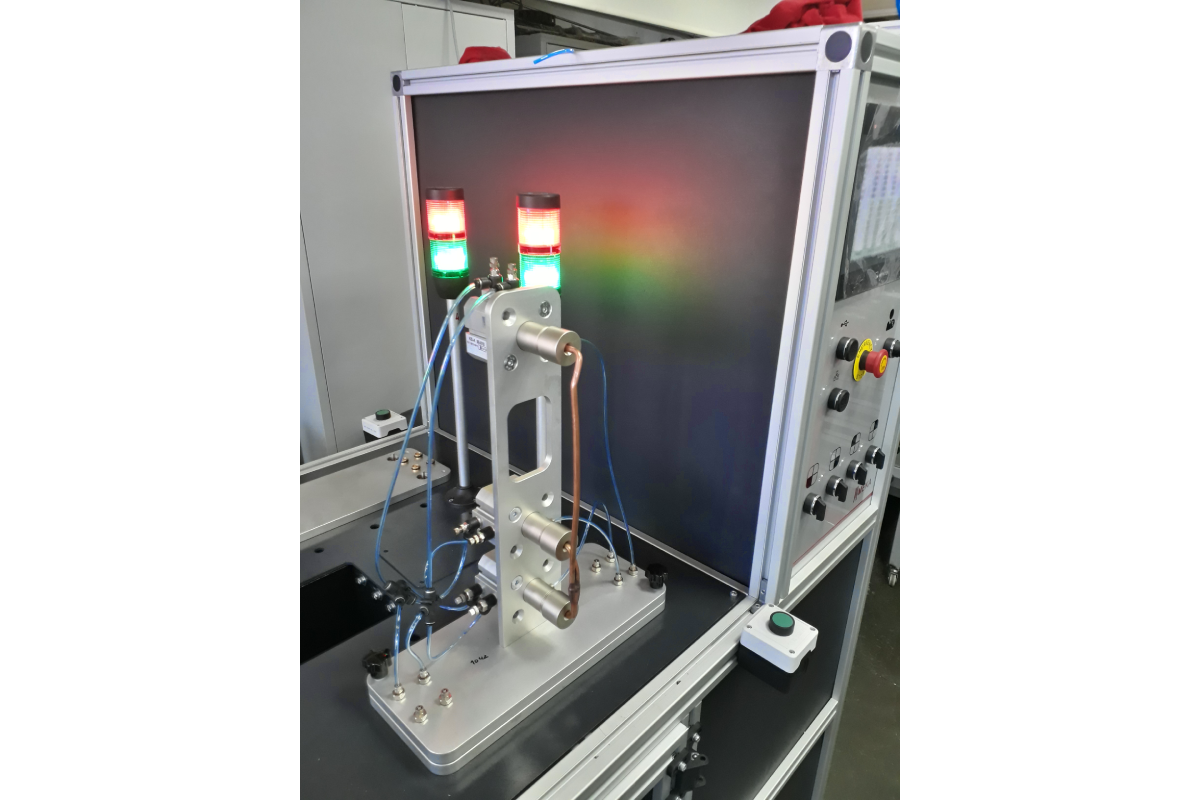

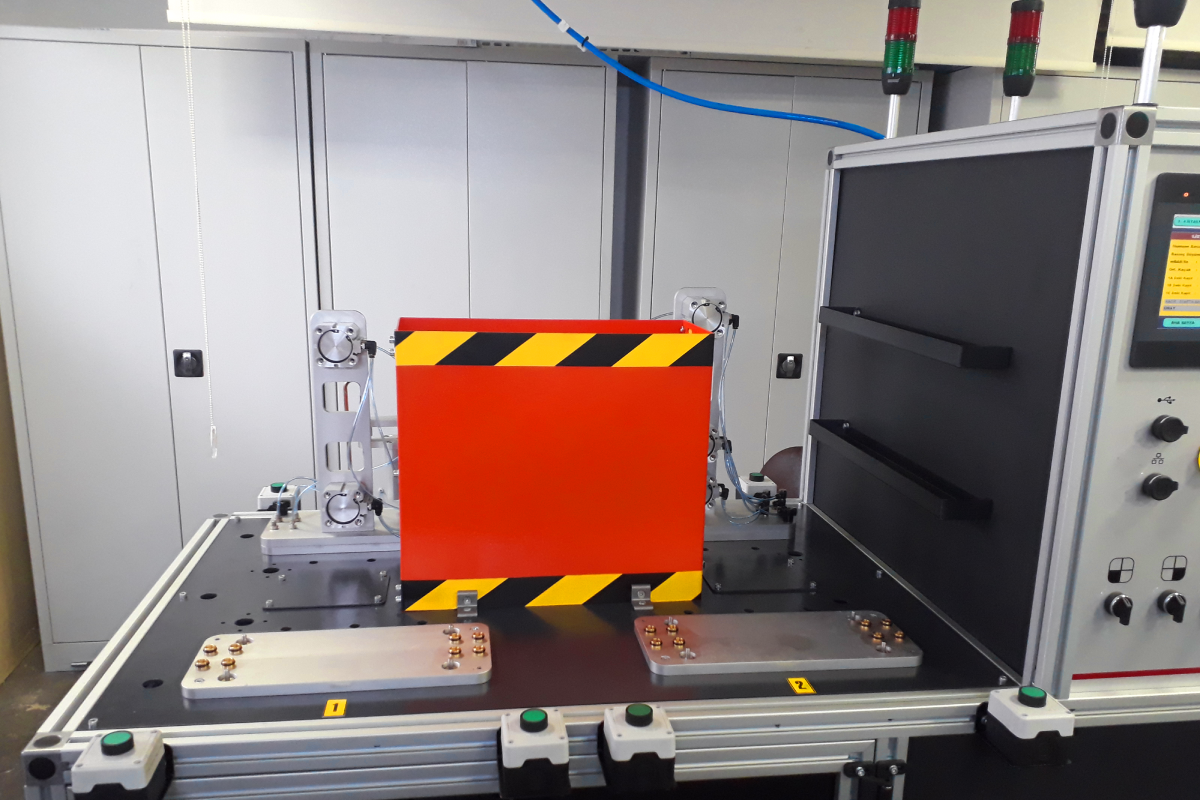

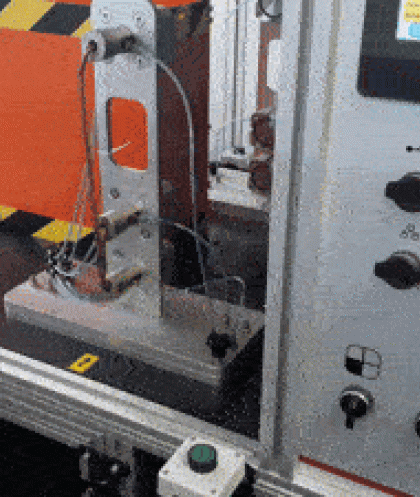

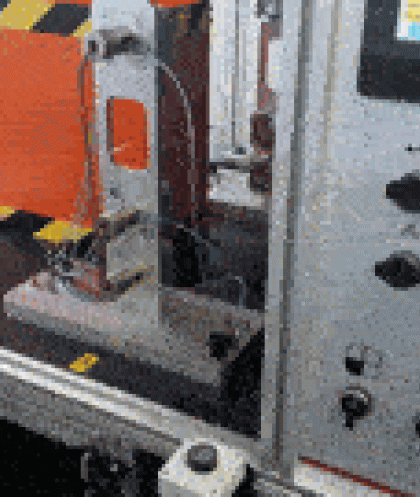

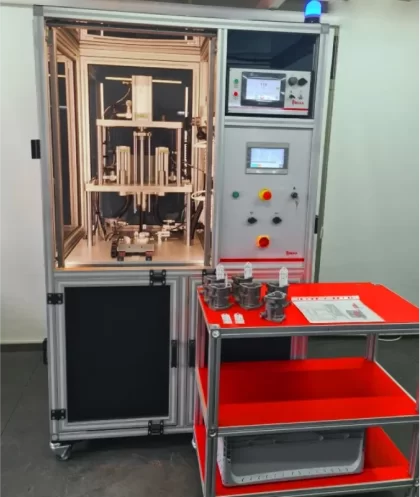

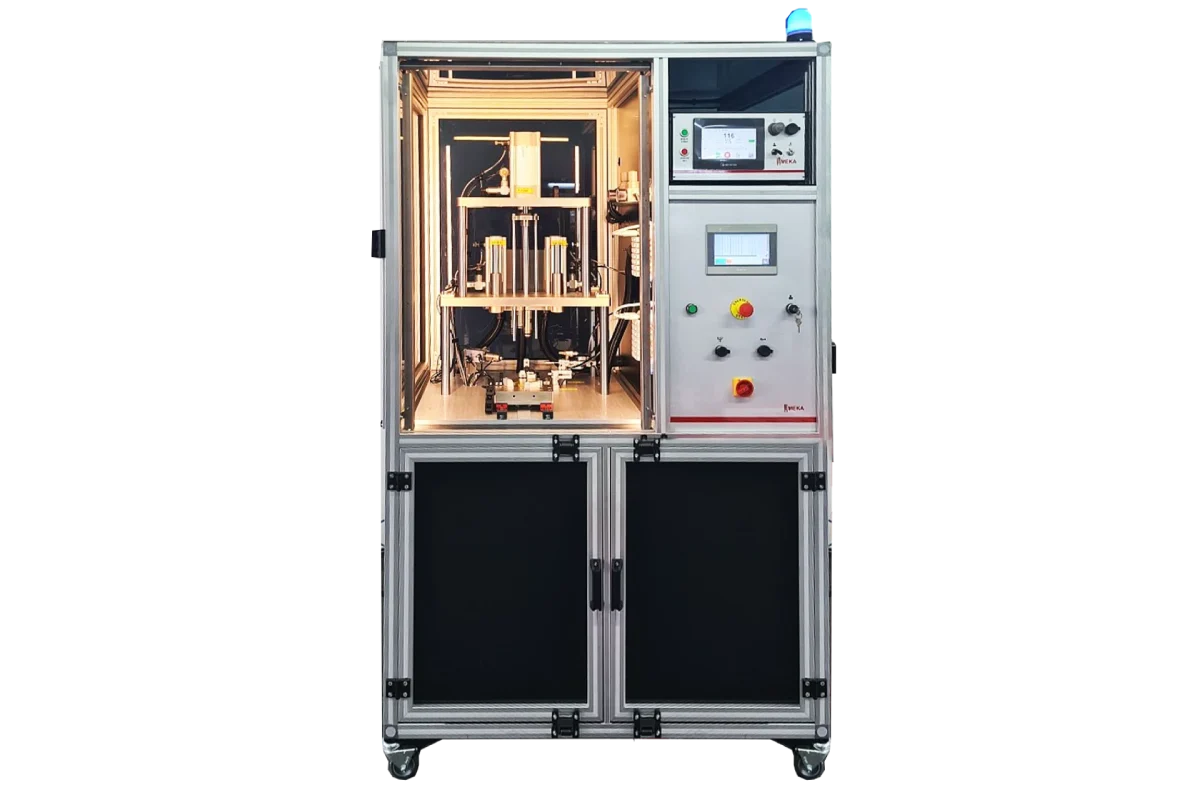

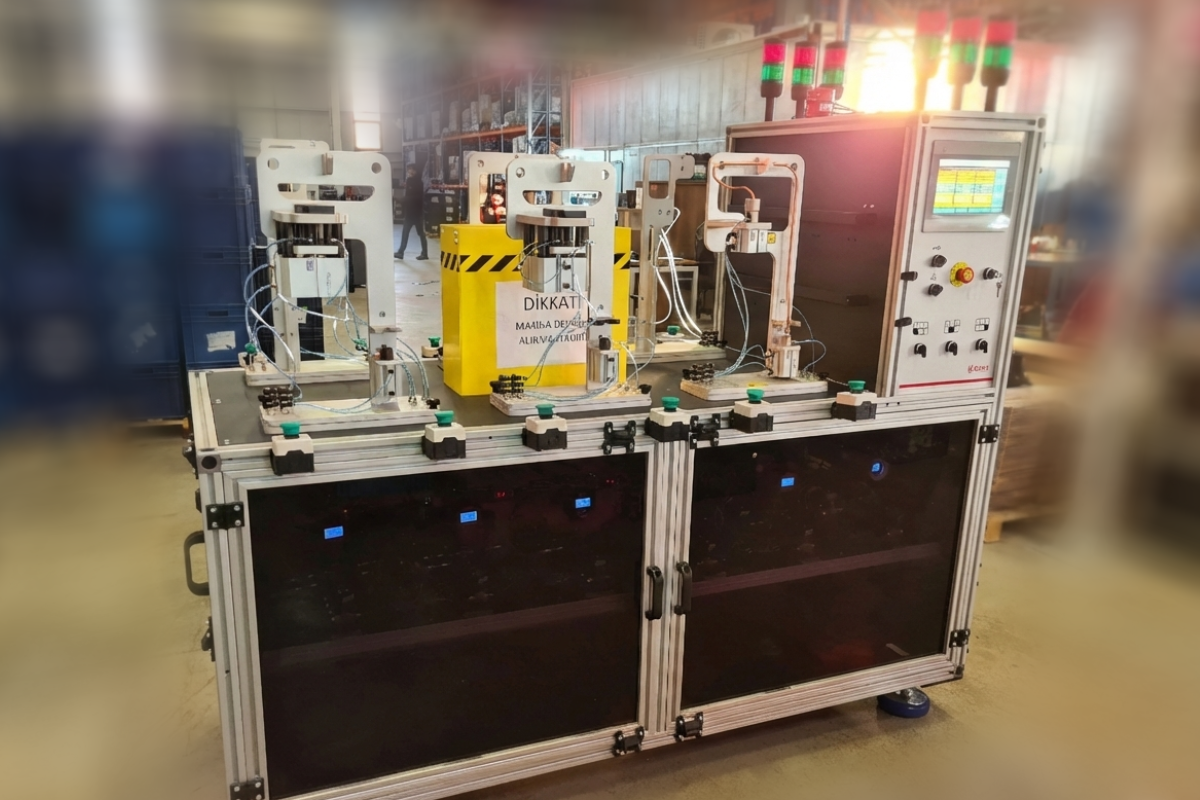

Sızdırmazlık Test İstasyonu

Meka Modüler Sızdırmazlık Test İstasyonları:  Anahtar Teslim Kalite Kontrol

Meka Test İstasyonları, sadece bir ölçüm cihazı değil; parça sabitleme, güvenlik ve raporlamayı tek gövdede sunan, üretim hattınızla tam uyumlu bütünleşik bir makinedir.

• Sınırsız Esneklik: "Tak-Çıkar" fikstür yapısı ile tamamen farklı ürünleri tek makinede test edebilir, artan kapasitenize göre sistemi modüler olarak büyütebilirsiniz.

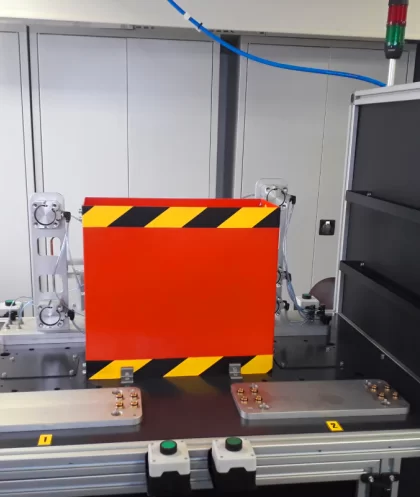

• Maksimum Güvenlik: Otomatik kapanan güvenlik bariyerleri ve 150 Bar basınca dayanıklı güçlendirilmiş kabin yapısıyla operatörü tam korur,.

• Akıllı Kontrol: Otomasyon panosu yok!  Meka test cihazlarında modüler PLC üniteleri bulunur. Fikstürleri ve robot haberleşmesini ve geri kalan her şeyi kendisi yönetir. Hassas lineer hareket ve döndürme testleri için Servo motor bile sürebilir!

• Tam İzlenebilirlik: Şahit numune teknolojisiyle en hassas kaçakları yakalar, sonucu kaydeder ve ürüne otomatik olarak "ONAY/RET" damgası basar

Product Videos

Technical Information

  • Pressures: 0–1 bar, 0–9 bar, 1–25 bar, 1–60 bar, 1–100 bar Electronic / manual pressure adjustment
  • Test media: Dry air, helium, water, oil
  • The test device can also be used independently of the station.
  • The data recording system can be integrated into the existing data infrastructure.
  • Without the need for an automation control panel, fixture pistons and safety equipment can be managed via the test device’s signal inputs and outputs.
  • Depending on the test device model, sequential testing of up to four ports on the same part can be performed.
  • Depending on the test device model, two parts can be tested simultaneously and independently.

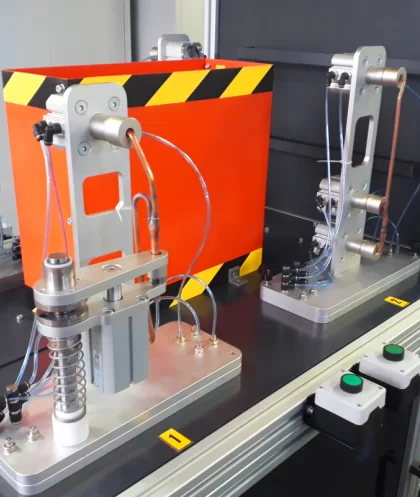

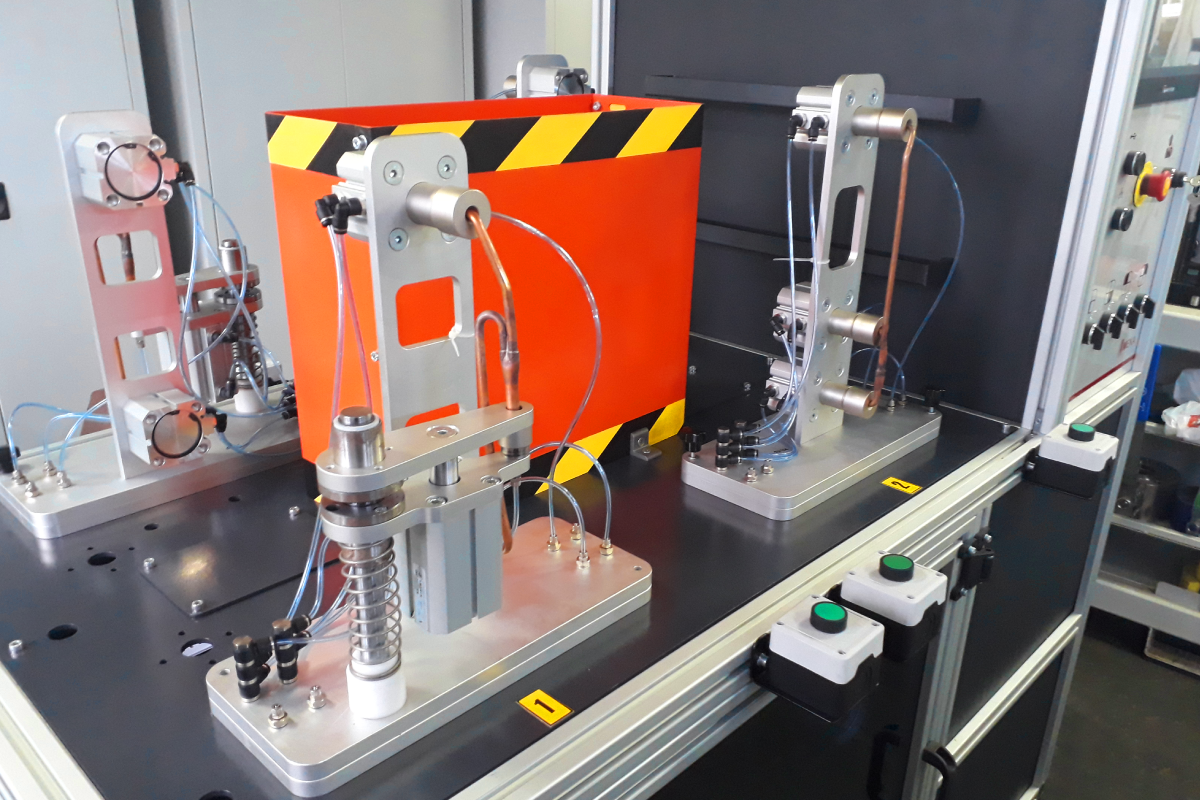

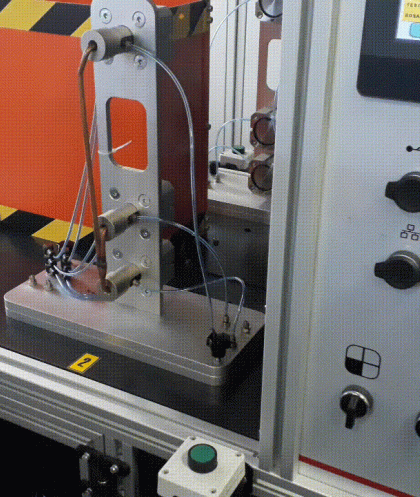

  • Different parts can be tested using the interchangeable fixture system.
